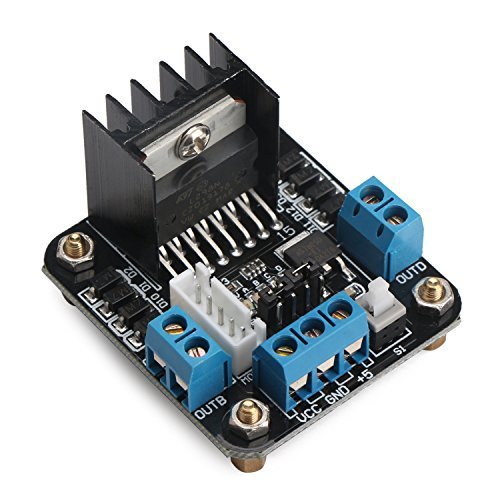

L298N H Bridge Motor Driver, DROK L298N DC Dual H-Bridge Stepper Motor Controller Board DC 5V 2A 20W Motor Regulator Drives Module

Q: After i ve worked for a month trying to understand why the other side( c and d) doesnt work,i found out some one start commit have the same problem.y?

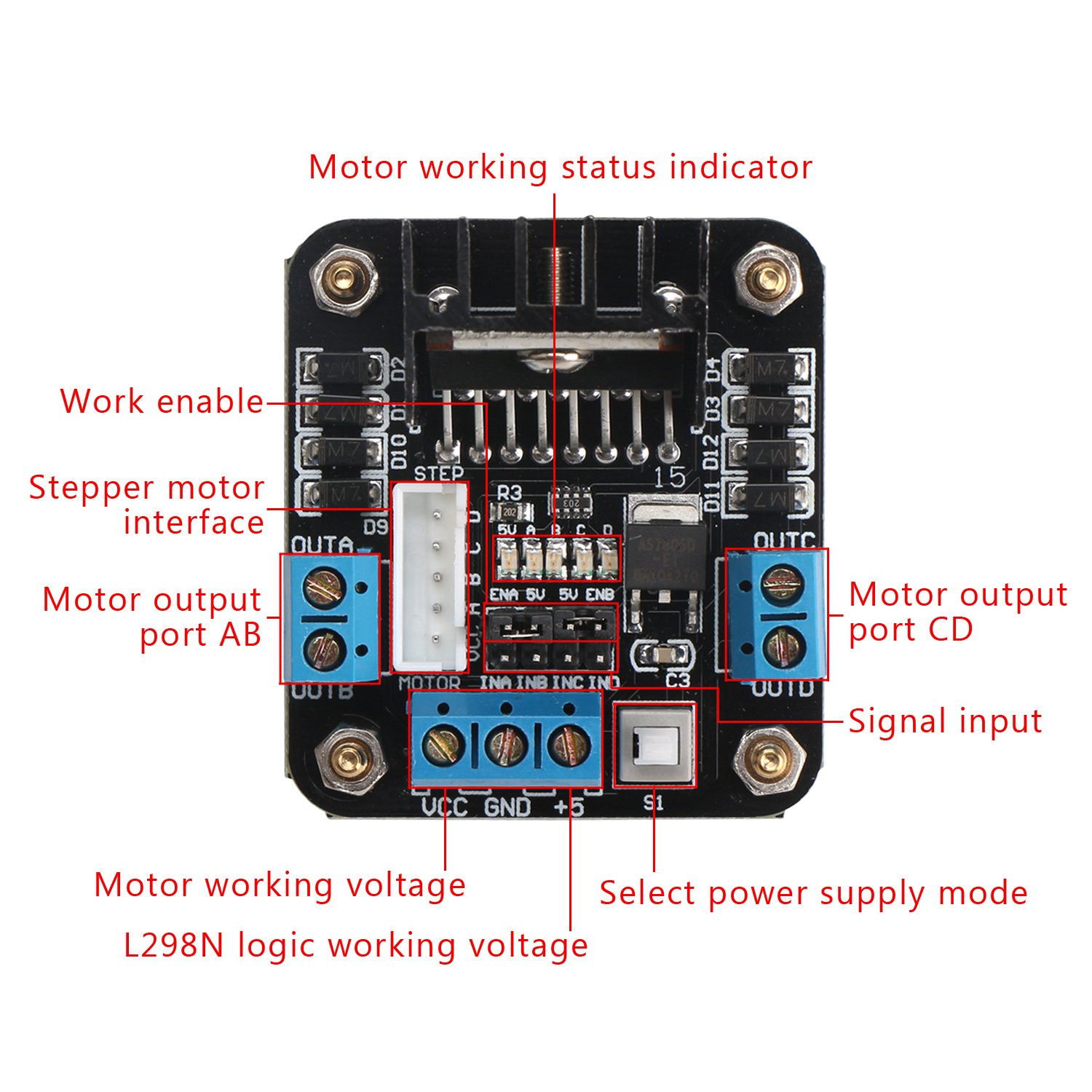

I'm not sure what the question is, the the screw terminal vcc or 12v goes to the battery pack the one that says 5v goes to the Arduino or other controller the ones that say ENA or ENB are for PWM that control the speed of the motors. out 1 and 2 control the direction of the motor on one side out 3 and 4 control the other motor. this motor driver only controls 2 motors in order to control more motors you need to connect all of the motors on one side to out 1 and 2 and the motors on the other side to out 3 and 4. if only one side works the problem is eater the motor controller is bad, it is wired wrong or it is in the programming.

Product ID: 22777725

Secure Transaction

⚡2A peak current power punch

🔧Dual H-Bridge for versatile motor control

🌡️Low heat, high efficiency

Frequently Bought Together

Description

⚙️ Drive your projects forward with power and precision!

WIDE VOLTAGE RANGE - Supports 5V to 35V driving voltage, perfect for diverse project needs
SMART LOGIC POWER MODE - Toggle logic power supply with a simple switch for seamless integration and easy setup
CLEAR STATUS INDICATORS - Built-in power and motor direction LEDs keep you informed at a glance 🌟
POWERFUL 2 A PEAK CURRENT - Delivers robust torque for demanding motor tasks without breaking a sweat ⚡
DUAL H BRIDGE DRIVER CHIP - Enables precise control of two DC motors or one stepper motor for ultimate versatility 🔧

The DROK L298N Dual H-Bridge Motor Driver Board is a compact, high-performance controller designed to drive up to two DC motors or one stepper motor with a peak current of 2A and power up to 20W. Featuring a wide input voltage range (5V-35V), low heat dissipation, and built-in status indicators, it offers professional-grade motor control ideal for prototyping, robotics, and automation projects.
